The H-type electrochemical cell is comprised of two types: the H-type replaceable ion-exchange membrane electrolytic cell and the H-type glass filter element electrolytic cell. The H-type replaceable ion-exchange membrane electrolyzer is a three-electrode double-chamber electrochemical reaction cell that is suitable for experimental electrochemical tests where the anode and cathode electrolytes cannot be mixed or are different, such as CO2RR and NRR tests. In case the measurement requires a specific gas atmosphere or an oxygen-free environment, a sealed electrolytic cell with air inlet and outlet pipes must be used.

The H-type replaceable ion-exchange membrane electrolyzer is composed of a working electrode chamber and a counter electrode chamber. The two chambers are separated by ion-exchange membranes (provided by the user), and stainless steel clips are used for rapid membrane change. The reference electrode and the working electrode are in the same chamber, which effectively reduces the R drop. The electrochemical cell can be quickly assembled and disassembled for easy cleaning. The lower glass tank body can also be customized into a double-jacketed glass type according to the temperature control requirements. It is connected to the outer tank body through the hose of a peristaltic pump or a circulating pump. The liquid circulates in the glass jacket layer, relying on heat and cold. Exchange to achieve the effect of cooling or heating the electrolyte solution.

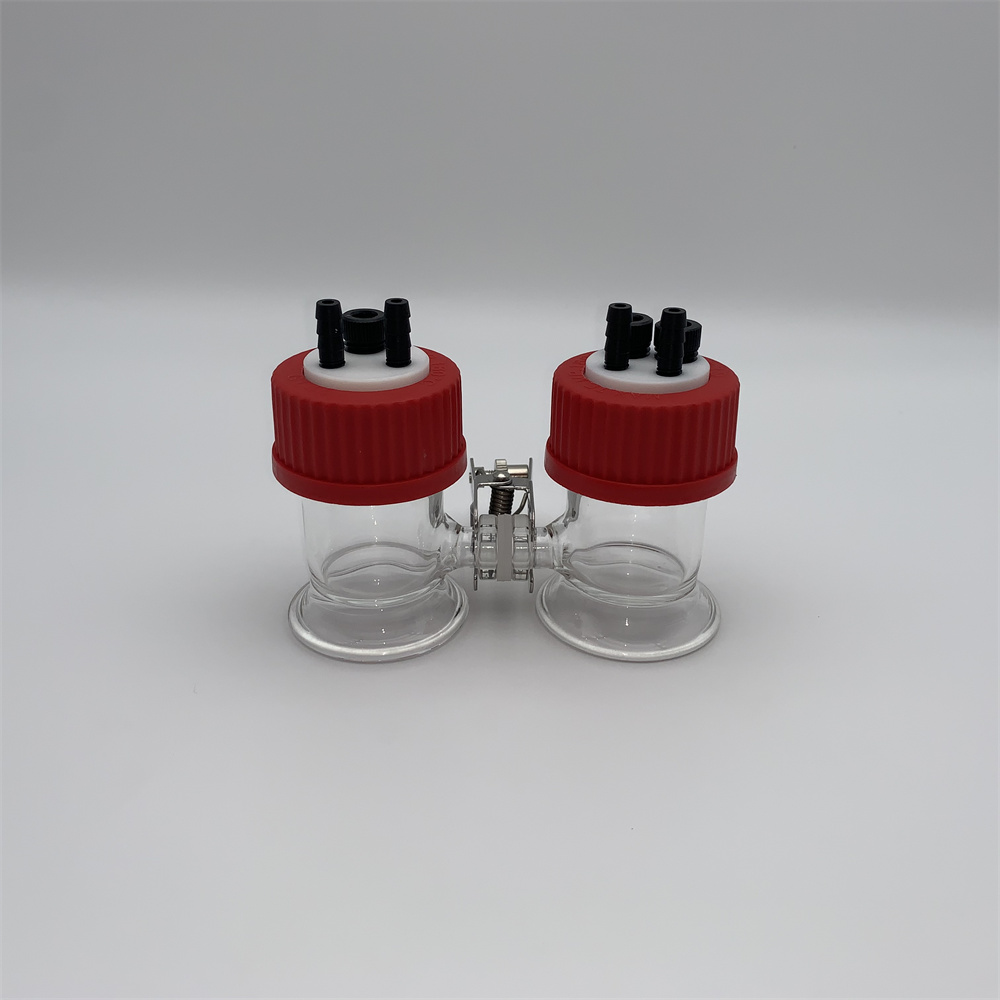

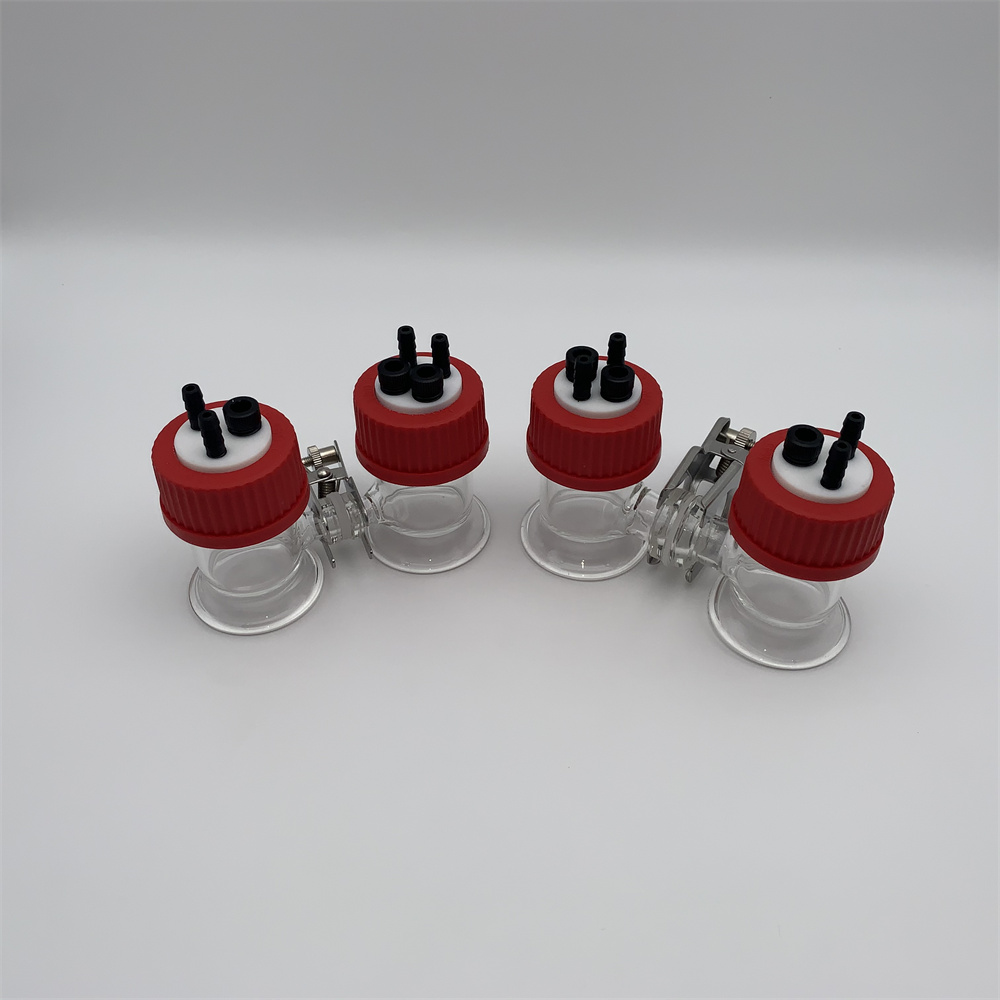

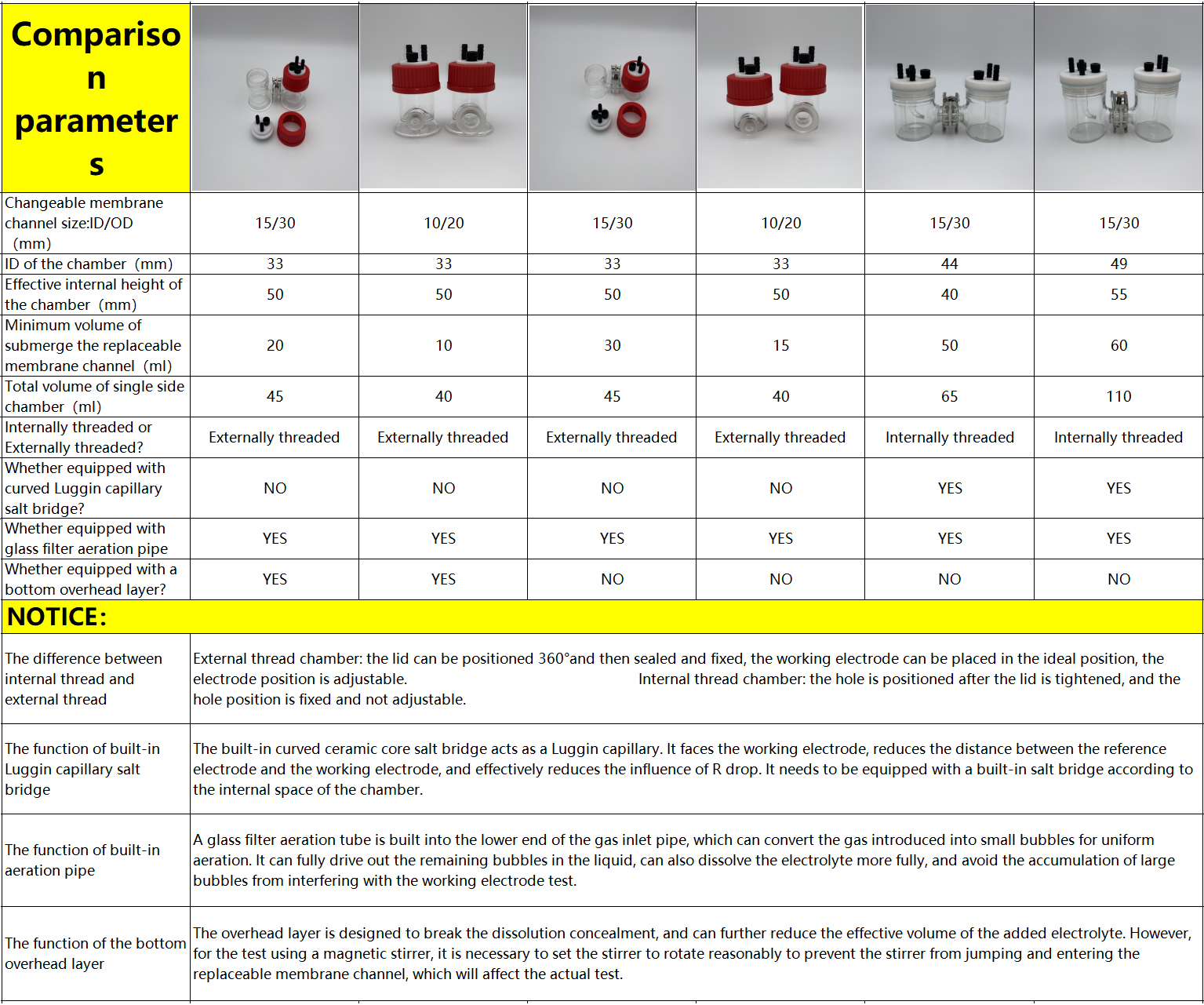

The volume of the electrolytic cell should be selected moderately. If the volume is too large, the amount of solution will be too much, which is unnecessary. During electrochemical measurement, the electrode surface undergoes oxidation and reduction reactions, and some substances in the solution are reduced by participating in the electrode reaction. At the same time, some reaction products will dissolve into the solution. If the volume of the electrolytic cell is too small, the solution concentration will change significantly during the long-term steady-state measurement, which will eventually affect the experimental results. There are four types of conventional H-type replaceable membrane sealed electrolyzers: 20ml, 30ml, 50ml, and 100ml. There are also some customized sizes. The differences are as follows:

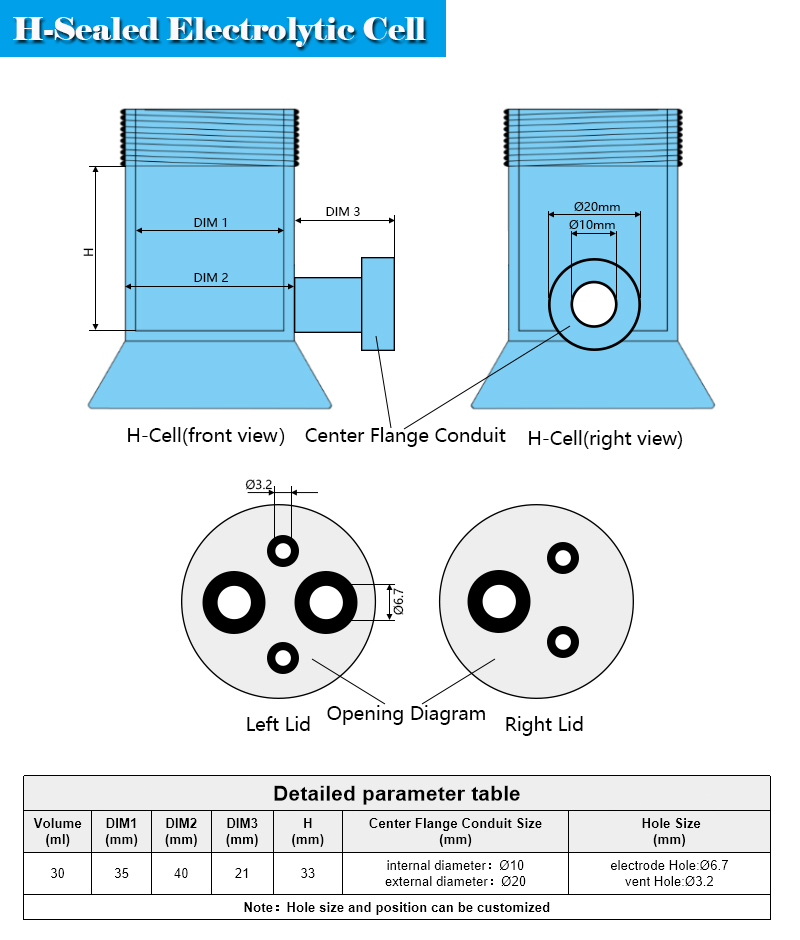

Product Includes:
2 * PTFE lid
2 * red PBT lid
2 * chamber
2 * Stainless steel clip
6 * electrode hole sealing screw
8 * gas hole sealing screw
2 * glass filter aeration pipe
1 * PTFE tube φ3mm
10 * Silicone gasket
20 * fluorine rubber O-ring
